Quadro

EVERTRUSS 290 SERIES

QUADRO

qua_wymiary

SPECIFICATIONS

TUBES 50x2mm (2 x 0.08inch)
BRACES 20x2mm (0.8 x 0.08inch)
ALLOY EN-AW 6082 T6

STRAIGHT SEGMENT LENGTHS

CODE LENGTH WEIGHT DESCRIPTION
E34-50 0.5m / 1.64ft 3.5kg / 7.72lbs straight segment
E34-75 0.75m / 2.46ft 4.7kg / 10.36lbs straight segment
E34-87,5 0.875m / 2.87ft 5.3kg / 11.68lbs straight segment
E34-100 1m / 3.28ft 5.6kg / 12.35lbs straight segment
E34-125 1.25m / 4.10ft 7.1kg / 15.65lbs straight segment
E34-150 1.5m / 4.92ft 8.3kg / 18.30lbs straight segment
E34-200 2m / 6.56ft 10.6kg / 23.37lbs straight segment
E34-215 2.15m / 7.05ft 11.15kg / 24.58lbs straight segment
E34-250 2.5m / 8.20ft 12.8kg / 28.22lbs straight segment
E34-275 2.75m / 9.02ft 14kg / 30.86lbs straight segment
E34-300 3m / 9.84ft 14.2kg / 31.31lbs straight segment
E34-350 3.5m / 11.48ft 17.5kg / 38.58lbs straight segment
E34-400 4m / 13.12ft 18.6kg / 41.01lbs straight segment
E34-450 4.5m / 14.76ft 20.9kg / 46.08lbs straight segment
E34-500 5m / 16.40ft 23kg / 50.71lbs straight segment

LOADING TABLES

2m 4m 6m 8m 10m 12m
Distrib. Load [kg/m] 1304 438 194 116 70.2 50.2
Deflection [mm] 5.4 16.2 33.9 58.2 88 126.1
Point load [kg] 2080 1000 680 500 400 320
Deflection [mm] 5.3 13.3 28 47.7 74.4 104.5
6.56ft 13.12ft 19.68ft 26.24ft 32.81ft 37.37ft
Distrib. Load [lb/ft] 876 294.3 130.3 77.9 47.2 33.7
Deflection [inch] 0.2 0.6 1.3 2.3 3.4 4.9
Point load [lb] 4585 2204 1499 1102 882 705
Deflection [inch] 0.2 0.5 1.1 1.8 2.9 4.1

ET34-C19

1m (3.28ft)
2-way 45° corner
6.9kg (15.21lbs)

ET34-C20

1m (3.28ft)
2-way 60° corner
7.4kg (16.31lbs)

ET34-C21

0.5m (1.64ft)
2-way 90° corner
4.5kg (9.92lbs)

ET34-C22

0.5m (1.64ft)
2-way 120° corner
5.1kg (11.24lbs)

ET34-C23

0.5m (1.64ft)
2-way 135° corner
5.2kg (11.46lbs)

ET34-C30

0.5m (1.64ft)
3-way 90° corner
5.9kg (13.01lbs)

ET34-T35

0.5m (1.64ft)
3-way T-junction
5.9kg (13.01lbs)

ET34-C41

0.5m (1.64ft)
4-way cross junction
7.4kg (16.31lbs)

ET34-T42

0.5m (1.64ft)
4-way T junction
7.4kg (16.31lbs)

ET34-C55

0.5m (1.64ft)
5-way T-junction
8.8kg (19.40lbs)

ET34-C60

0.5m (1.64ft)
10.2kg (22.49lbs)

ET34-C

Circle various diameters

ET34-MCB

0.29m (0.95ft)
Multi connection box
4.7kg (10.36lbs)
Tri

EVERTRUSS 290 SERIES

TRI

tri_wymiary

SPECIFICATIONS

TUBES 50x2mm (2 x 0.08inch)
BRACES 20x2mm (0.8 x 0.08inch)
ALLOY EN-AW 6082 T6

STRAIGHT SEGMENT LENGTHS

CODE LENGTH WEIGHT DESCRIPTION
E33-50 0.5m / 1.64ft 2.4kg / 5.29lbs straight segment
E33-75 0.75m / 2.46ft 3.2kg / 7.05lbs straight segment
E33-87,5 0.875m / 2.87ft 3.4kg / 7.50lbs straight segment
E33-100 1m / 3.28ft 4.1kg / 9.04lbs straight segment
E33-125 1.25m / 4.10ft 4.9kg / 10.80lbs straight segment
E33-150 1.5m / 4.92ft 5.8kg / 12.79lbs straight segment
E33-200 2m / 6.56ft 7.5kg / 16.53lbs straight segment
E33-250 2.5m / 8.20ft 9.1kg / 20.06lbs straight segment
E33-300 3m / 9.84ft 10.8kg / 23.81lbs straight segment
E33-350 3.5m / 11.48ft 12.5kg / 27.56lbs straight segment
E33-400 4m / 13.12ft 14.1kg / 31.09lbs straight segment
E33-450 4.5m / 14.76ft 15.7kg / 34.61lbs straight segment
E33-500 5m / 16.40ft 17.3kg / 38.14lbs straight segment

LOADING TABLES

2m 4m 6m 8m 10m 12m
Distrib. Load [kg/m] 750 195 98 56 35 23
Deflection [mm] 4.8 12.6 29 52.5 82.2 115.2
Point load [kg] 600 415 270 205 160 135
Deflection [mm] 2.9 10.5 16.8 33.4 50.8 81.3
6.56ft 13.12ft 19.68ft 26.24ft 32.81ft 37.37ft
Distrib. Load [lb/ft] 503 111 66 37.6 23.5 15.5
Deflection [inch] 0.2 0.5 1.1 2 3.2 4.5
Point load [lb] 1322.8 915 540 451.9 352.7 297.6
Deflection [inch] 0.1 0.2 0.7 1.3 2 3.2

ET33-C19

1m (3.28ft)
2-way 45° corner
5.2kg (11.46lbs)

ET33-C20

1m (3.28ft)
2-way 60° corner
5.4kg (11.90lbs)

ET33-C21

1m (3.28ft)
2-way 60° corner
5.4kg (11.90lbs)

ET33-C22

0.5m (1.64ft)
2-way 120° corner
3.8kg (8.38lbs)

ET33-C23

0.5m (1.64ft)
2-way 135° corner
3.9kg (8.60lbs)

ET33-C24

0.5m (1.64ft)
2-way 90° corner apex out
3kg (6.61lbs)

ET33-C25

0.5m (1.64ft)
2-way 90° corner apex in
3.5kg (7.72lbs)

ET33-C31

0.5m (1.64ft)
3-way 90° corner apex up right
4.9kg (10.80lbs)

ET33-C32

0.5m (1.64ft)
3-way 90° corner apex up left
4.9kg (10.80lbs)

ET33-C33

0.5m (1.64ft)
3-way 90° corner apex down right
4.9kg (10.80lbs)

ET33-C34

0.5m (1.64ft)
3-way 90° corner apex down left
4.9kg (10.80lbs)

ET33-T35

0.5m (1.64ft)
3-way vertical T-junction apex down
5.3kg (11.68lbs)

ET33-T36

0.5m (1.64ft)
3-way horizontal T-junction
4.6kg (10.14lbs)

ET33-T37

0.5m (1.64ft)
3-way horizontal T-junction apex up
5.5kg (12.13lbs)

ET33-T38

0.5m (1.64ft)
3-way vertical T-junction apex down
5.5kg (12.13lbs)

ET33-T39

0.5m (1.64ft)
3-way vertical T-junction
5.3kg (11.68lbs)

ET33-C41

0.5m (1.64ft)
4-way cross junction
5.7kg (12.57lbs)

ET33-T42

0.5m (1.64ft)
4-way T-junction apex down
6.1kg (13.45lbs)

ET33-T43

0.5m (1.64ft)
4-way T-junction apex up
6.1kg (13.45lbs)

ET33-C44

0.5m (1.64ft)
4-way 90° corner right
6.5kg (14.33lbs)

ET33-C45

0.5m (1.64ft)
4-way 90° corner left
6.5kg (14.33lbs)

ET33-T51

0.5m (1.64ft)
5-way T-junction apex down
7.6kg (16.76lbs)

ET33-C52

0.5m (1.64ft)
5-way cross junction apex up
7.2kg (15.87lbs)

ET33-C53

0.5m (1.64ft)
5-way cross junction apex down
7.2kg (15.87lbs)

ET33-T61

0.5m (1.64ft)
6-way T-junction
9.8kg (21.61lbs)

ET33-C1

Circle apex up/down various diameters

ET33-C2

Circle apex in various diameters

ET33-C3

Circle apex out various diameters
Duo

EVERTRUSS 290 SERIES

DUO

duo_wymiary

SPECIFICATIONS

TUBES 50x2mm (2 x 0.08inch)
BRACES 20x2mm (0.8 x 0.08inch)
ALLOY 20x2mm (0.8 x 0.08inch)

STRAIGHT SEGMENT LENGTHS

CODE LENGTH WEIGHT DESCRIPTION
E32-50 0.5m / 1.64ft 1.6kg / 3.53lbs straight segment
E32-75 0.75m / 2.46ft 2.1kg / 4.63lbs straight segment
E32-100 1m / 3.28ft 2.6kg / 5.73lbs straight segment
E32-150 1.5m / 4.92ft 3.5kg / 7.72lbs straight segment
E32-200 2m / 6.56ft 4.4kg / 9.70lbs straight segment
E32-250 2.5m / 8.20ft 5.4kg / 11.90lbs straight segment
E32-300 3m / 9.84ft 6.4kg / 14.11lbs straight segment
E32-350 3.5m / 11.48ft 7.3kg / 16.09lbs straight segment
E32-400 4m / 13.12ft 8.2kg / 18.08lbs straight segment
E32-450 4.5m / 14.76ft 9.1kg / 20.06lbs straight segment
E32-500 5m / 16.40ft 10kg / 22.05lbs straight segment

LOADING TABLES

2m 4m 6m 8m 10m 12m
Distrib. Load [kg/m] 465 228 101 56.3 38 24.9
Deflection [mm] 3.5 16.6 33.3 56.4 91.8 125.4
Point load [kg] 900 500 340 250 200 160
Deflection [mm] 4.6 13.5 27.6 47.9 74.8 105.3
6.56ft 13.12ft 19.68ft 26.24ft 32.81ft 37.37ft
Distrib. Load [lb/ft] 312.5 153.2 67.9 37.8 25.5 16.7
Deflection [inch] 0.1 0.7 1.3 2.2 3.6 4.9
Point load [lb] 1984 1102 749 551 441 352
Deflection [inch] 0.2 0.5 1.1 1.9 2.9 4.1

ET32-C19-H

1m (3.28ft)
2-way 45° corner horizontal
3kg (6.61lbs)

ET32-C19-V

1m (3.28ft)
2-way 45° corner vertical
3.4kg (7.50lbs)

ET32-C20-H

1m (3.28ft)
2-way 60° corner horizontal
3.2kg (7.05lbs)

ET32-C20-V

1m (3.28ft)
2-way 60° corner vertical
3.4kg (7.50lbs)

ET32-C21-H

0.5m (1.64ft)
2-way 90° corner horizontal
2.3kg (5.07lbs)

ET32-C21-V

0.5m (1.64ft)
2-way 90° corner vertical
2.5kg (5.51lbs)

ET32-C22-H

0.5m (1.64ft)
2-way 120° corner horizontal
2.6kg (5.73lbs)

ET32-C22-V

0.5m (1.64ft)
2-way 120° corner vertical
2.8kg (6.17lbs)

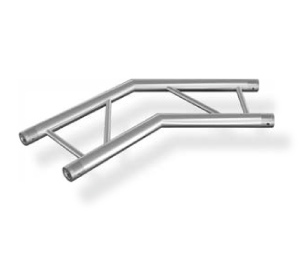

ET32-C23-H

0.5m (1.64ft)
2-way 135° corner horizontal
2.7kg (5.95lbs)

ET32-C23-V

0.5m (1.64ft)
2-way 135° corner vertical
2.8kg (6.17lbs)

ET32-C30-H

0.5m (1.64ft)
3-way 90° corner horizontal
3.8kg (8.38lbs)

ET32-C30-H

0.5m (1.64ft)
3-way 90° corner vertical
3.8kg (8.38lbs)

ET32-T35-H

0.5m (1.64ft)
3-way horizontal T-junction
3.2kg (7.05lbs)

ET32-T35-V

0.5m (1.64ft)
3-way vertical T-junction
3.2kg (7.05lbs)

ET32-C41-H

0.5m (1.64ft)
4-way horizontal cross junction
3.8kg (8.38lbs)

ET32-C41-V

0.5m (1.64ft)
4-way vertical cross junction
4kg (8.82lbs)

ET32-T42-H

0.5m (1.64ft)
4-way horizontal T-junction
4kg (8.82lbs)

ET32-T42-V

0.5m (1.64ft)
4-way vertical T-junction
4.4kg (9.70lbs)

ET32-C44-V

0.5m (1.64ft)
4-way 90° corner vertical
4.4kg (9.70lbs)

ET32-CH

Circle horizontal various diameters

ET32-CV

Circle vertical various diameters

Uno

EVERTRUSS 290 SERIES

UNO

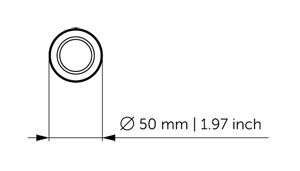

uno_wymiary

SPECIFICATIONS

TUBES 50x2mm (2 x 0.08inch)
ALLOY EN-AW 6082 T6

STRAIGHT SEGMENT LENGTHS

CODE LENGTH WEIGHT DESCRIPTION
E31-50 0.5m / 1.64ft 0.7kg / 1.54lbs straight segment
E31-100 1m / 3.28ft 1.1kg / 2.43lbs straight segment
E31-150 1.5m / 4.92ft 1.5kg / 3.31lbs straight segment
E31-200 2m / 6.56ft 1.9kg / 4.19lbs straight segment
E31-250 2.5m / 8.20ft 2.3kg / 5.07lbs straight segment
E31-300 3m / 9.84ft 2.7kg / 5.95lbs straight segment

LOADING TABLES

1m 2m 3m 4m
Distrib. Load [kg/m] 225 110 75 53
Deflection [mm] 4.7 36.4 125.6 280.4
Point load [kg] 115 55 35 25
Deflection [mm] 3.8 8.4 31.3 52
6.56ft 13.12ft 19.68ft 26.24ft
Distrib. Load [lb/ft] 151.2 73.9 50.4 35.6
Defl ection [inch] 0.2 1.4 4.9 11.4
Point load [lb] 253.5 121.3 77.16 55.12
Deflection [inch] 0.2 0.3 1.2 2

ET31-C19

0.5m (1.64ft)
2-way 45° corner
1.1kg (2.43lbs)

ET31-C20

0.5m (1.64ft)
2-way 60° corner
1.1kg (2.43lbs)

ET31-C21

0.5m (1.64ft)
2-way 90° corner
1.1kg (2.43lbs)

ET31-C22

0.5m (1.64ft)
2-way 120° corner
1.1kg (2.43lbs)

ET31-C23

0.5m (1.64ft)
2-way 135° corner
1.1kg (2.43lbs)

#3191

Multi junction cube
